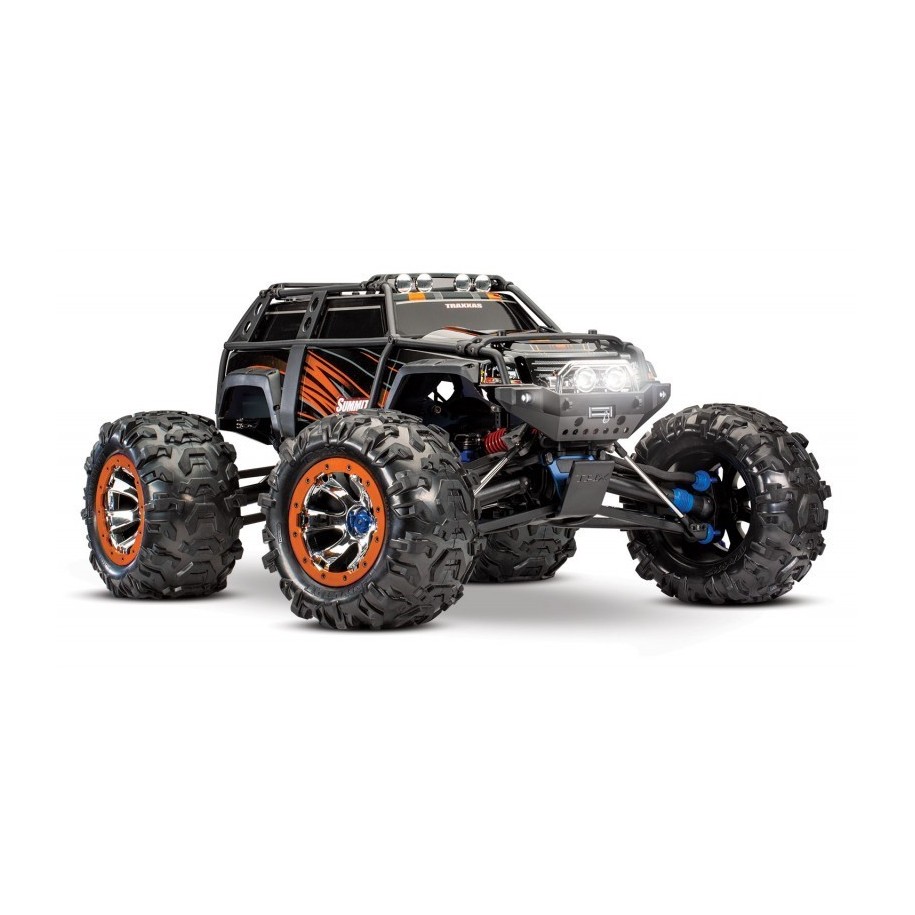

Traxxas Summit Txx56076-4 Rc Model Car 4Wd Electric Monster Truck

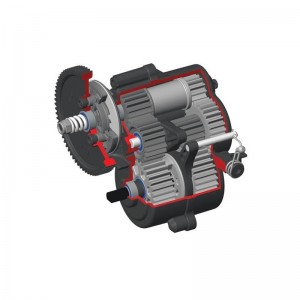

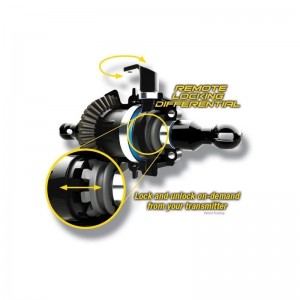

Versatility never seen before thanks to the T-Lock differentials and reduced gear transmission

Only the Summit gives you the ability to lock the differentials and change gear ratio directly from the transmitter. Set the gearbox to the long 25: 1 gear ratio for greater speed or the reduced one with a 70: 1 ratio specific for more technical routes, you will have an incredible ability to climb at very low speed and you will be able to overcome unlikely obstacles. In extreme situations where you need more traction, just lock the front differential, and if that's not enough, you can also lock the rear one, thus having a fully traction four-wheel drive.

10 LED headlight system

You won't have to leave your Traxxas Summit inside the garage when the sun goes down, because with its high-brightness ten-LED headlight system you will light up even the deepest night. Four bright white LEDs are integrated into the front bumper, while the remaining six red LEDs are integrated into the rear bumper. Neatly housed in the front and rear bumpers they are so well protected that they will also be very durable. The wiring of the system has also been designed to be best housed on the frame with special cable glands, thus minimizing the possibility of damage.

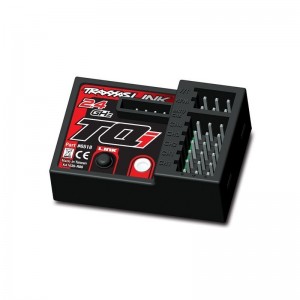

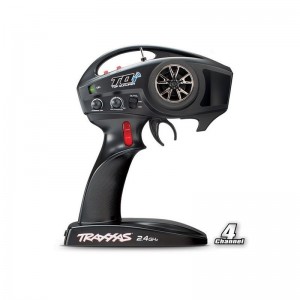

The most advanced radio system in the world for RTR (Ready To Race)

The Traxxas Summit is equipped with the world's most advanced radio system for RTR. The new Traxxas TQi transmitter is complete with all the necessary functions and settings and equipped with the new 2.4ghz signal transmission technology to the receiver. It also has the automatic model recognition function that will allow you to combine up to 30 different models, each with its own program and stored settings. In this way you will have the possibility to limit yourself to turning on the radio and then it will be the same to do everything else, that is to recognize the paired model and immediately position itself on the program memorized with the settings of the model in question. With the TQi transmitter you can then adjust and set: steering and throttle limit switches, with the multifunction knob you can manage the steering and throttle exponential, the steering percentage, the brake percentage, or the throttle trim. Finally, the Traxxas TQi transmitter has also been designed to have a shape as ergonomic as possible in order to allow long fun sessions driving your Traxxas Summit, and at the same time also to obtain an attractive and modern aesthetic look, integrating for example the transmission antenna inside.

Training Mode ™

The exclusive Traxxas "patented" Training Mode ™ system gives everyone the opportunity to become pilots. It will be sufficient to press the regulator's power button to enter programming and limit the engine power to 50%. This beautiful feature allows even the youngest or newbies to train and implement their driving and control skills of the car in a simpler way, before unlocking the maximum power of the car having full control. By setting the control unit on Training Mode ™ you will have the possibility to let friends who have never driven a radio controlled car try the car before.

Compatible with Traxxas Link wireless module

The most important feature of the TQi transmitter, and you probably already have it, is undoubtedly the Traxxas Link wireless module part number 6511, which is sold separately and with which the TQi radio can be equipped. This fantastic option turns your Android or Apple device, also sold separately, into the electronic programming systems of your Traxxas models. All this is possible through a free downloadable application that Traxxas has developed specifically to be able to manage all the radio control settings of the various memorized models, and to be able to have all the telemetry data live if the various sensors that are sold separately are also installed on the machine. .

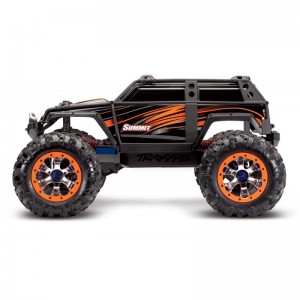

Realistic and robust ExoCage body

The bodywork of the Traxxas Summit was created to obtain the best reproduction result from the reality of the Off-road / Suv style with an aggressive and captivating appearance completed by a sporty and modern graphic coloring, but also to have a body that was robust enough. In fact, a roll-bar structure called ExoCage was designed on it in true rock crawling style, aesthetically pleasing but also protective just like in reality.

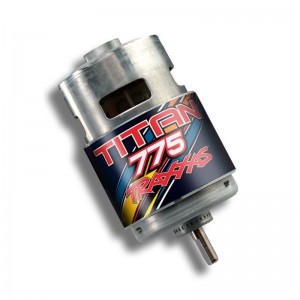

Waterproof electronics and Titan 775 engine

The Traxxas Summit is powered by the largest engine ever fitted to a monster truck, the Titan 775. This massive engine is equipped with an internal cooling fan and an additional layer of metal around the case for the strongest magnetic field possible. results in having more torque and bass power to be able to climb anywhere. The Titan 775 is operated by the EVX-2 controller developed by Traxxas specifically for monster trucks. The latter is characterized by three adjustable guide profiles, temperature protection, lipo cut-off and connectors for batteries resistant to high current passages. It has a wide enough working voltage range up to a maximum of 16.8V for maximum power and torque. Last but not least, the EVX-2 is waterproof which will allow you to use your Traxxas Summit even in really extreme conditions.

Geode rims, soft sponge fillings and Canyon AT tires

An off-road car like the Traxxas Summit is even more valid if it is obviously also equipped with tires that are up to the task. In this case, the American manufacturer has surpassed itself by designing a new type of rubber specific for the Summit, the Canyon AT. It has a very aggressive multi-terrain design, with edges and angles that are perfect for enjoying your Summit in the dirt, in the dirt, in the grass, on the rocks, and on many other types of surfaces, practically anywhere. The soft internal filling allows the rubber to adapt perfectly to any surface with maximum grip and the beautiful and colorful Geode rim blocks the rubber keeping it perfectly adherent to itself with the Beadlock system. The colored locking ring is essential to safeguard the rim edges and the rubber especially when climbing rocks.

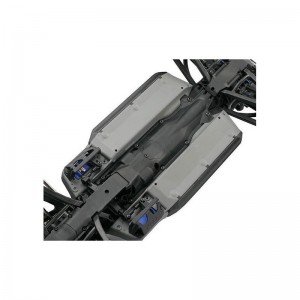

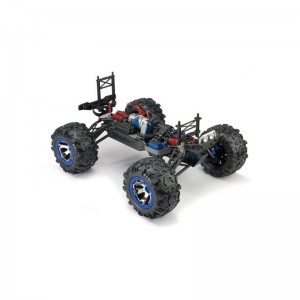

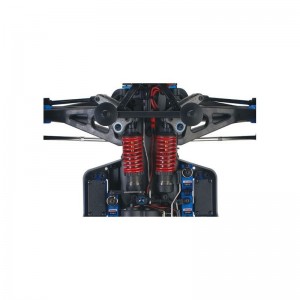

Futuristic design frame

The chassis adopted for the Summit is usually previously designed for the E-Revo, which marked a new chapter in the history of electric monster truck chassis for both aesthetics and performance. An engineering masterpiece in search of the maximum possible lightness without losing one of the primary characteristics such as strength and reliability. Consisting of two battery compartments, positioned in the lowest and most central point possible, in which various types of batteries can be housed, from NiMh to Lipo for maximum performance. This will allow you to have the upper part of the frame freer and cleaner to leave room for the electronic system consisting of regulator and motor, and a center of gravity of the machine as much as possible which translates into the possibility of being able to face obstacles and steeper climbs, to have greater balance in extreme situations and great handling even at speed.

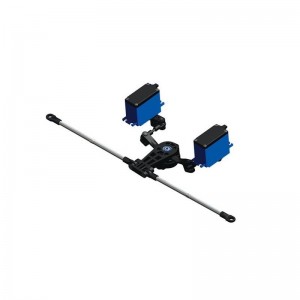

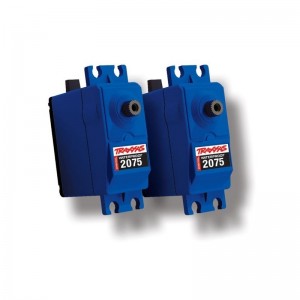

Steering return with two servos

With Canyon tires that have a lot of grip and traction and with the need to move the steering at very low speeds, if not even when stationary, the Traxxas Summit could not miss an adequate steering system. In fact, it is equipped with two very powerful waterproof "High Torque" digital servos that will give you the possibility to manage the steering even in extreme situations having freedom to maneuver.

Data sheet

Length 563 Mm

Front track 469.5 Mm

Rear Track 472 Mm

Frame Height From Ground 121 Mm

Total height 320 Mm

Product Weight 4.98 Kg

Step 377 Mm

Length Front Shock Absorbers 87 Mm

Length Rear Shock Absorbers 87 Mm

Transmission Module 32 Dp

Skill Level 2
